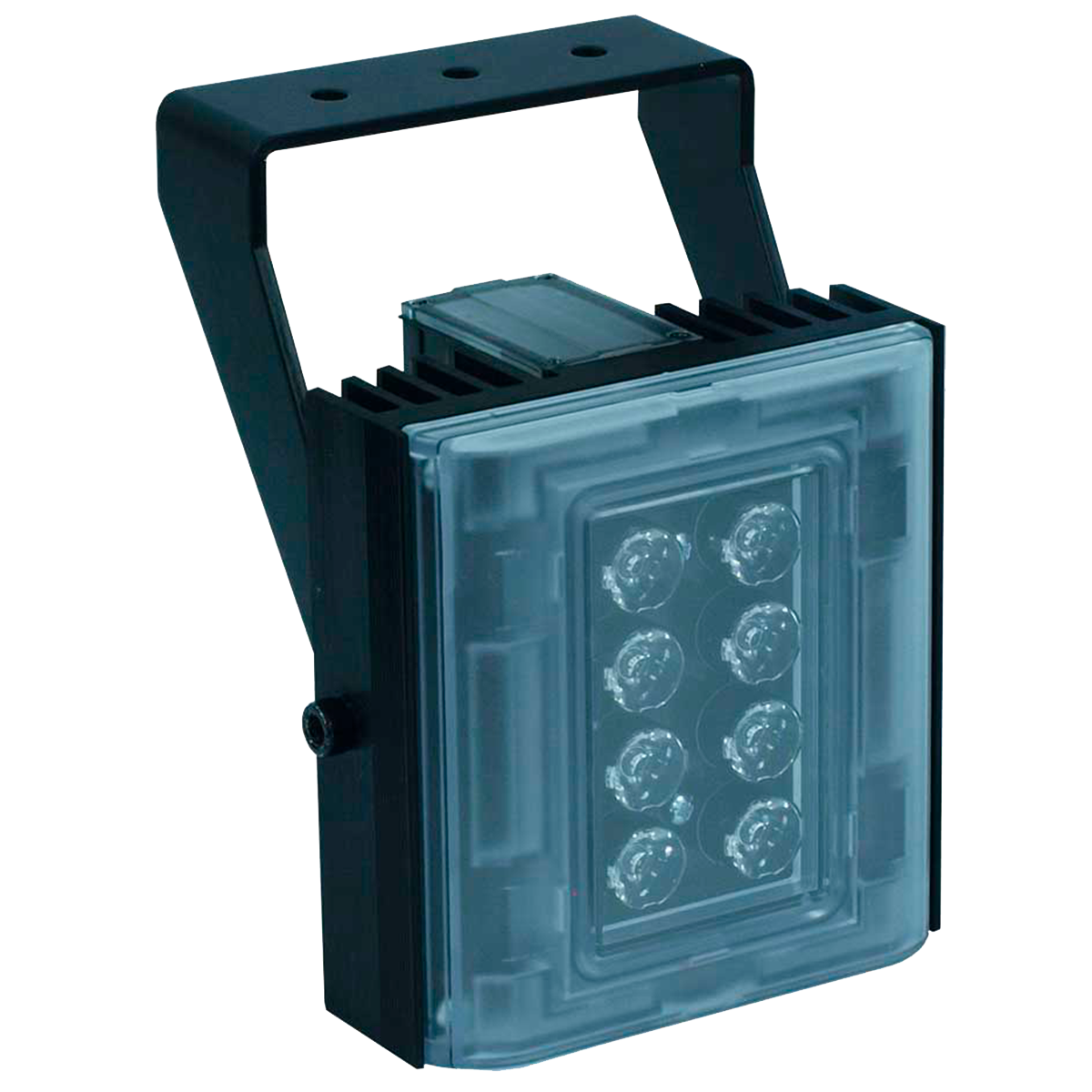

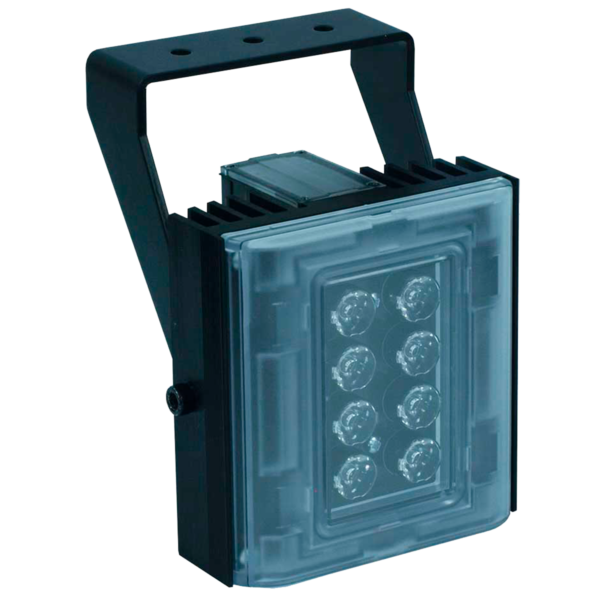

GJD Clarius PLUS PoE medium white light illuminator
White light illuminator with a range of up to 114 m, which uses Ethernet technology and provides both deterrent and detection functions.
The Clarius® range of high performance white light illuminators are designed to provide class-leading performance, long life and very low maintenance. They incorporate the latest surface mount LEDs with enhanced optical output and exceptional reliability to provide excellent night time imaging. Each unit is installed with integrated control circuitry to carefully control the LED output, so it emits uniform illumination and has an expected life of over 10 years.
The Clarius® Plus range of illuminators includes a new interchangeable lens diffuser system that allows the user to easily change the angle of illumination. Elliptical beam profiles allow more light to be emitted where it is needed, allowing longer distances and minimising light wastage. The system also helps to avoid overexposure of objects in the foreground.
STRUCTURE: Rugged, high quality aluminium extrusion.
PHOTOCELL: Adjustable 20 - 70 lux
ILLUMINATION: Adjustable 10 % - 100 %.
OPERATING TEMPERATURE: -50° - 50 °C (-58° - 122 °F)
MOUNTING: Powder coated stainless steel wall bracket
INPUT: PoE (IEEE802.3af)
POWER CONSUMPTION: 25W
IP RATING: IP66 in accordance with EN60529:1992
ELECTRONICS: Highly efficient surface mount power LEDs with advanced current limited integrated control circuitry.
LUMINOUS PERFORMANCE: 2400 lm
COLOUR TEMPERATURE: 5700 K (6000 K and 6500K options available on request)
COLOUR QUALITY INDEX: Typ. 80
RECOMMENDED POWER UNIT: Any IEEE 802.3af injector
