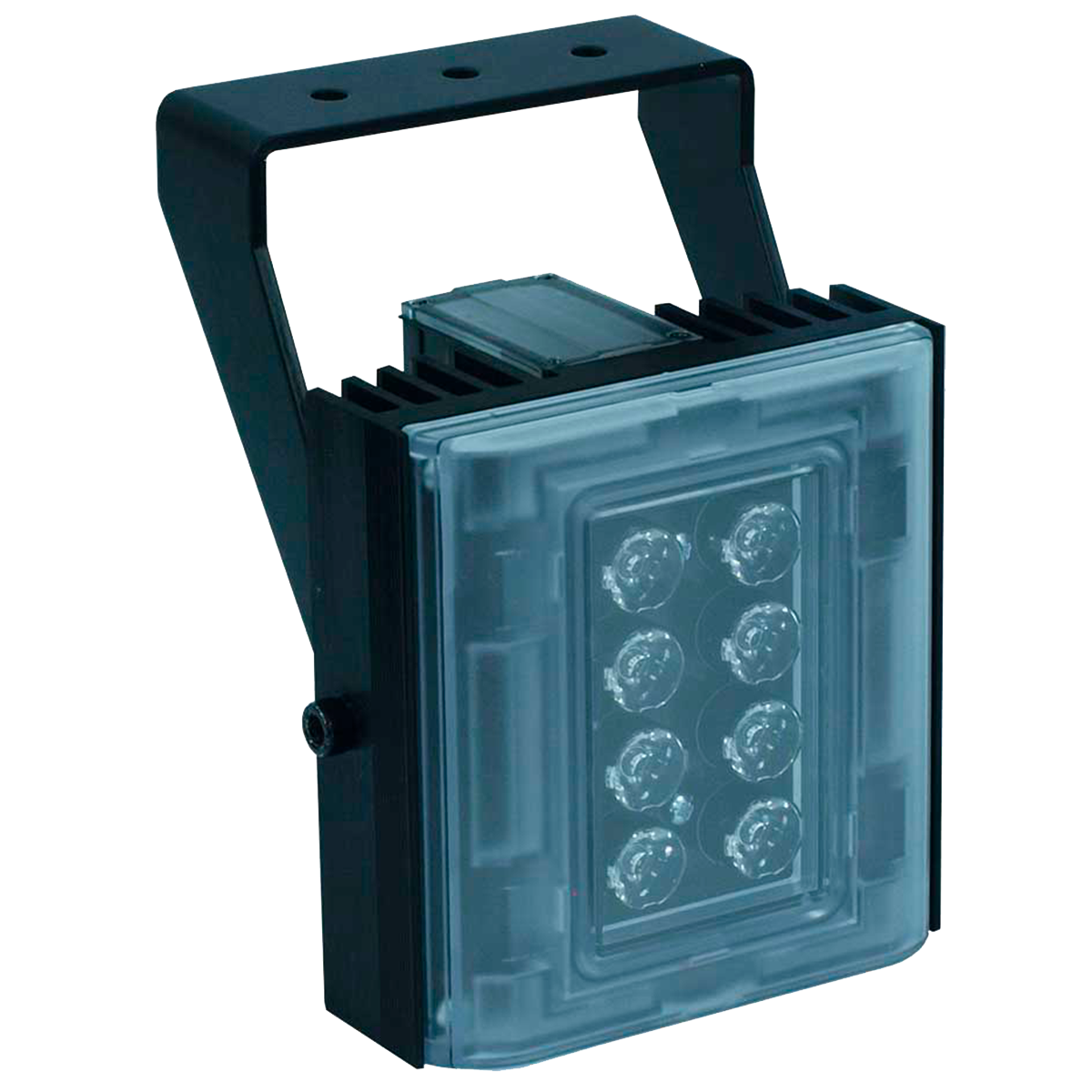

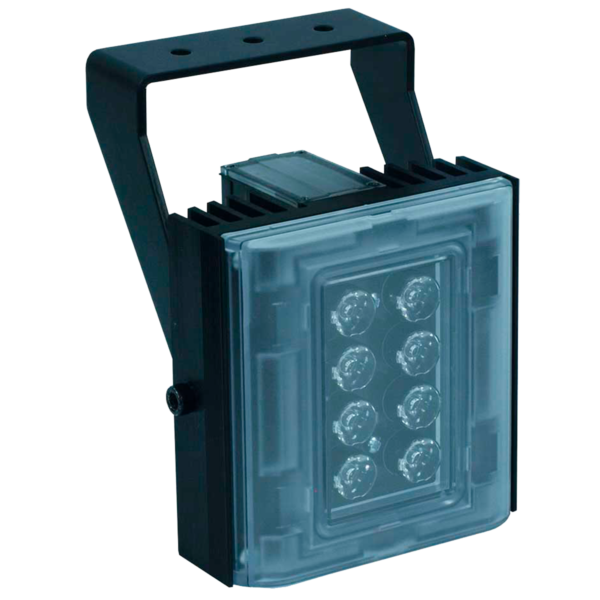

GJD Clarius PLUS white light illuminator, medium size
GJD’s medium white light LED illuminator covers up to 81 m and offers both deterrent and detection functions.
The Clarius® PLUS range of high performance white light LED illuminators are designed to provide class-leading performance, long life and very low maintenance. They incorporate the latest surface mount LEDs with enhanced optical output and exceptional reliability to provide excellent night time imaging. Each unit is installed with integrated control circuitry to carefully control the LED output, so it emits uniform illumination and has an expected life of over 10 years.
The Clarius® PLUS range of illuminators includes a new interchangeable lens diffuser system that allows the user to easily change the angle of illumination. Elliptical beam profiles allow more light to be emitted where it is needed, allowing longer distances and minimising light wastage. The system also helps to avoid overexposure of objects in the foreground.
- STRUCTURE: Rugged, high quality aluminium extrusion.
- PHOTOCELL:Adjustable 20 - 70 lux
- ILLUMINATION:Adjustable 10 % - 100 %>
- TEMPERATURE DE FUNCIONAMIENTO:-50° - 50 °C (-58° - 122 °F)
- MOUNTING:Powder coated stainless steel wall bracket
- INPUT:12-32 VDC or 24 VAC +/- 10 %.
- CONSUMPTION: 26W
- IP RATING:IP66 in accordance with EN60529:1992
- ELECTRONICS:Highly efficient surface mount power LEDs with advanced current limited integrated control circuitry.
- LUME PERFORMANCE: 2400 lm
- COLOUR TEMPERATURE: 5700 K (6000 K and 6500K options available on request)
- COLOUR QUALITY RATIO: Typ. 80
- RECOMMENDED POWER SUPPLY UNIT: ALT-30-24
